Philips Advance T8 Fluorescent Ballast - 120-277V AC | Instant Start

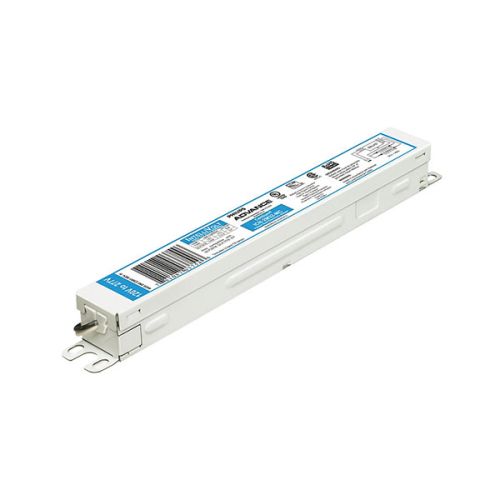

The Philips Advance T8 Fluorescent Ballast, model IOPA1P32LWN35M, is the component described here. The role of this model is to operate the corresponding fluorescent lamp arrangement within a compatible fixture. It is specified for 1 X F32T8; preserve the required lamp type and quantity when selecting the ballast. The instant start starting arrangement is part of the compatibility check for the installed lamp circuit. The listed ballast factor is 0.77, which is relevant when comparing the output of the same lamps on different compatible ballasts.

This version is specified for 120-277V AC; that rating is part of the selection when replacing an existing fitting. Compare length 9.50 in., width 1.08 in., height 1.05 in. with the available space for the ballast compartment, especially when retaining an existing enclosure or shade. Follow the wiring diagram for this model when making the replacement connections.

Buying tip: Match the lamp designation, number of lamps and supply voltage to the existing ballast.
