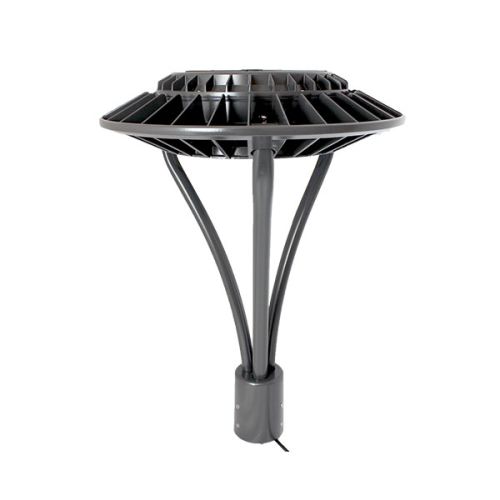

The Premise LED Street Light, model PT2-504-1-PC, is specified at 50W, 4000K. In a commercial grounds project, this version of this model supports a design centred on area coverage planned from the mounting locations. Select the mounting arrangement for the actual location. The 4000K white tone is a practical option for the lighting scheme where an intermediate colour appearance is preferred over very warm or daylight-toned lighting. At 6000 lumens, this model can be compared by light output when planning area coverage planned from the mounting locations; the final appearance depends on the fitting and its placement.
The pole or support interface for this model must match the selected mounting hardware and its dimensions. Mounting arm not included; sold separately. Check the installation supply against the 120-277V AC rating for this version before ordering. The listed body dimensions are height 24.4 in., diameter 17.7 in.; use them when checking the available space around the fixture location.
| Brands | Premise LED |
|---|---|
| Color Temperature | 4000K |
| CRI | 75 |
| Power Factor | 0.92 |
| Life Hours | 50,000 |
| Wattage | 50W |
| Lumens | 6000 lumens |
| Voltage | 120-277V AC |
| Equivalent Wattage | 100-150W HID |
| Product | LED Street Light |
| Color | Natural White |
| MPN ( Part No.) | PT2-504-1-PC |
| Beam Angle | 110° |
| Rating | IP65 |
| Diameter | 17.7 in. |
| Warranty | 10 Years |
| Height | 24.4 in. |
