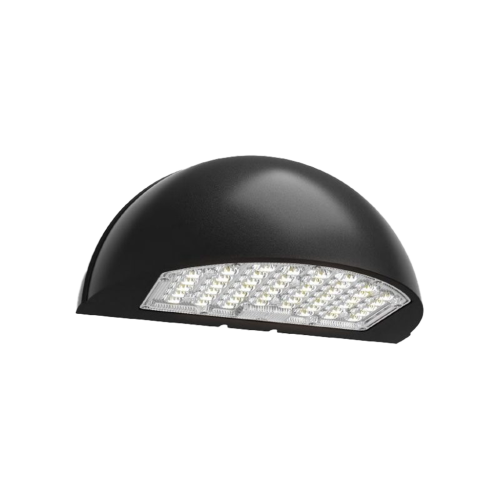

Reno ECLIPSE LED Half-Moon Architectural Wall Pack R1

The Reno ECLIPSE LED Half-Moon Architectural Wall Pack R1, model RENO-SCWP-MW-DV-MCCT-R1, is specified at 24/32/40W. Order Code: R51030. This model is an option to assess for illumination along the building frontage in a service door or perimeter route; the surrounding layout determines the positions and quantity required.

For this model, coordinate the wall connection and fixture orientation with the entrance or route below it. Use the 120-347V version only where the supply and control arrangement suit its electrical specification. This version lists length 16", width 10", height 10". Those measurements help check physical fit at the fixture location. Use the 3000K/4000K/5000K colour options to choose the appearance of the space during setup; colour selection and brightness adjustment serve different purposes. The 24/32/40W power settings allow output to be selected for the layout; use the lower or higher setting according to the task, not a fixed rule for room names. Use the 0-10V control interface for dimming; the power circuit alone does not provide the separate dimming signal.

For RENO-SCWP-MW-DV-MCCT-R1, refer to the manufacturer’s specification sheet for the detailed dimensions and installation requirements.

Buying tip: Check the mounting location, junction-box position and the direction the light will fall before selecting the fixture.
