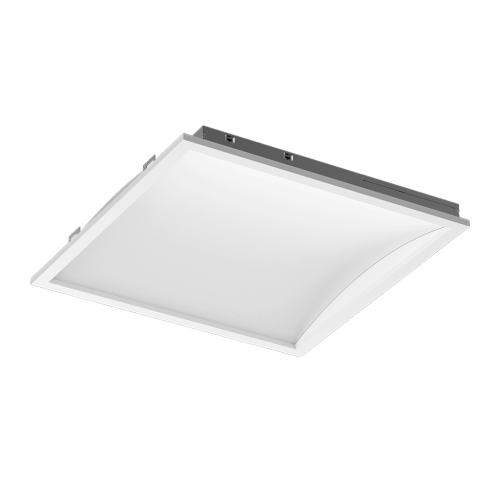

RENO-22BPID-DV-MCCT-MW is the Reno AIM LED 2x2 Indirect Curved Panel in the 25/30/40w, 3-CCT configuration. Order this version under R35122. When planning an office with a compatible ceiling layout, use this model where its form and mounting requirements fit the need for broad overhead illumination across desks.
For this model, coordinate the 2x2 panel footprint with the ceiling support system and the selected mounting hardware. Plan the electrical connection around this model’s 120-347V rating. With 3500K/4000K/5000K available, the same model can be set to the colour appearance chosen for the installation. Follow the model instructions when changing settings. At 25/30/40w selectable power, the installer can choose the appropriate operating level after considering the layout and the required illumination. The specified 0-10V dimming requires a compatible 0-10V control and the corresponding control connection.
For RENO-22BPID-DV-MCCT-MW, refer to the manufacturer’s specification sheet for the detailed dimensions and installation requirements.
Buying tip: Measure the ceiling grid opening and confirm the mounting method. Verify the nominal and actual dimensions when replacing a metric fixture.
| GTA Delivery Only | No |
|---|---|
| Brands | Reno LED Lighting |
| Color Temperature | 3-CCT |
| CRI | >80 |
| Dimmable | YES |
| Life Hours | 100,000hrs |
| Wattage | 25/30/40w |
| Voltage | 120-347V |
| Size | 2x2 |
| Operation Temp. | -13°F to 113°F (-25°C to 45°C) |
| MPN ( Part No.) | RENO-22BPID-DV-MCCT-MW |
| Beam Angle | 90° |
| Product Color | White |
| Warranty | 10 Years |
| Order Code | R35122 |
