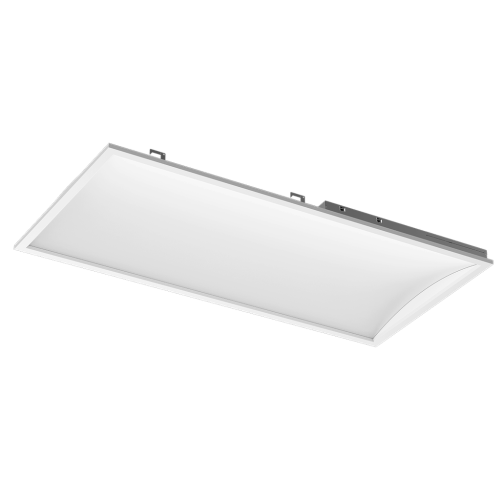

RENO-24BPID-DV-MCCT-MW is the Reno AIM LED 2x4 Indirect Curved Panel in the 30/40/50W, 3-CCT configuration. Order Code: R35123. Consider this model for a corridor or reception area when illumination distributed along the ceiling is part of the lighting plan and the model’s installation conditions are satisfied.
Plan the 2x4 panel position and supports for this model before choosing mounting accessories. The 120-347V supply specification must match the circuit serving this model. The 3500K/4000K/5000K colour selection lets the installer coordinate the light with surrounding fixtures instead of committing the whole space to one fixed tone. The 30/40/50W power settings allow output to be selected for the layout; use the lower or higher setting according to the task, not a fixed rule for room names. The specified 0-10V dimming requires a compatible 0-10V control and the corresponding control connection.
For RENO-24BPID-DV-MCCT-MW, refer to the manufacturer’s specification sheet for the detailed dimensions and installation requirements.
Buying tip: Measure the ceiling grid opening and confirm the mounting method. Verify the nominal and actual dimensions when replacing a metric fixture.
| GTA Delivery Only | No |
|---|---|
| Brands | Reno LED Lighting |
| Color Temperature | 3-CCT |
| CRI | >80 |
| Dimmable | YES |
| Life Hours | 100,000hrs |
| Wattage | 30/40/50W |
| Voltage | 120-347V |
| Size | 2x4 |
| Operation Temp. | -13°F to 113°F (-25°C to 45°C) |
| MPN ( Part No.) | RENO-24BPID-DV-MCCT-MW |
| Beam Angle | 90° |
| Product Color | White |
| Warranty | 10 Years |
| Order Code | R35123 |
