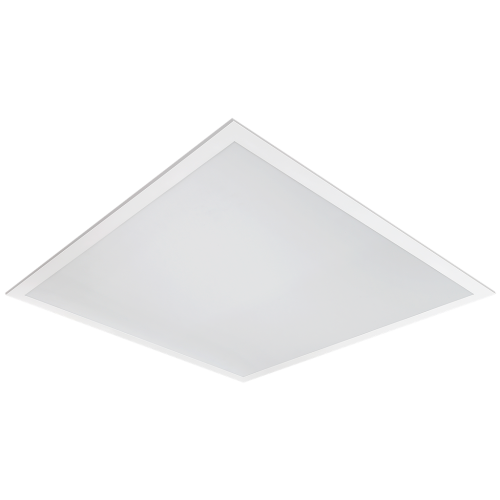

The Reno AIM 2X2 LED Back-Lit Panel, model RENO-22BLPL-DV-MW-MCCT, is specified at 20/30/40W, 3-CCT. Order this version under R35306. The intended role of this model in a service or administration space is a regular arrangement of ceiling fixtures, subject to the mounting and electrical conditions of the project.
Plan the 2x2 panel position and supports for this model before choosing mounting accessories. The 120-347V supply specification must match the circuit serving this model. The 3500K/4000K/5000K colour selection lets the installer coordinate the light with surrounding fixtures instead of committing the whole space to one fixed tone. The selectable 20/30/40W configuration supports adjustment during setup so the same fixture need not run at its highest setting everywhere. The specified 0-10V dimming requires a compatible 0-10V control and the corresponding control connection.
For RENO-22BLPL-DV-MW-MCCT, refer to the manufacturer’s specification sheet and installation instructions for the detailed dimensions and installation requirements.
Buying tip: Measure the ceiling grid opening and confirm the mounting method. Verify the nominal and actual dimensions when replacing a metric fixture.
| GTA Delivery Only | No |
|---|---|
| Brands | Reno LED Lighting |
| Color Temperature | 3-CCT |
| CRI | >80 |
| Dimmable | YES |
| Life Hours | 100,000hrs |
| Wattage | 20/30/40W |
| Voltage | 120-347V |
| Size | 2x2 |
| Operation Temp. | -4°F to +122°F (-20°C to +50°C) |
| MPN ( Part No.) | RENO-22BLPL-DV-MW-MCCT |
| Beam Angle | 125° |
| Product Color | White |
| Warranty | 5 years |
| Order Code | R35306 |
