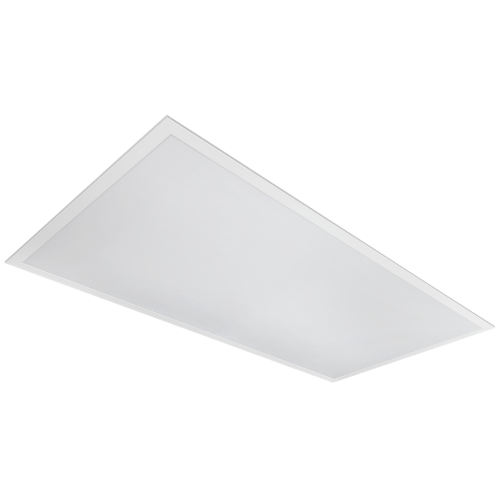

Reno AIM 2X4 LED Back-Lit Panel (RENO-24BLPL-DV-MW-MCCT) is the 30/40/50W / 3-CCT version. Order this version under R35307. This model is an option to assess for illumination distributed along the ceiling in a corridor or reception area; the surrounding layout determines the positions and quantity required.
Check the 2x4 panel format against the ceiling layout for this model. Recessed, surface and suspended arrangements require the hardware specified for that model. The 120-347V supply specification must match the circuit serving this model. The 3500K/4000K/5000K setting choice is useful when the final colour preference will be decided at the installation rather than at ordering. At 30/40/50W selectable power, the installer can choose the appropriate operating level after considering the layout and the required illumination. The specified 0-10V dimming requires a compatible 0-10V control and the corresponding control connection.
For RENO-24BLPL-DV-MW-MCCT, refer to the manufacturer’s specification sheet and installation instructions for the detailed dimensions and installation requirements.
Buying tip: Measure the ceiling grid opening and confirm the mounting method. Verify the nominal and actual dimensions when replacing a metric fixture.
| GTA Delivery Only | No |
|---|---|
| Brands | Reno LED Lighting |
| Color Temperature | 3-CCT |
| CRI | >80 |
| Dimmable | YES |
| Life Hours | 100,000hrs |
| Wattage | 30/40/50W |
| Voltage | 120-347V |
| Size | 2x4 |
| Operation Temp. | -4°F to +122°F (-20°C to +50°C) |
| MPN ( Part No.) | RENO-24BLPL-DV-MW-MCCT |
| Beam Angle | 125° |
| Product Color | White |
| Warranty | 5 years |
| Order Code | R35307 |
