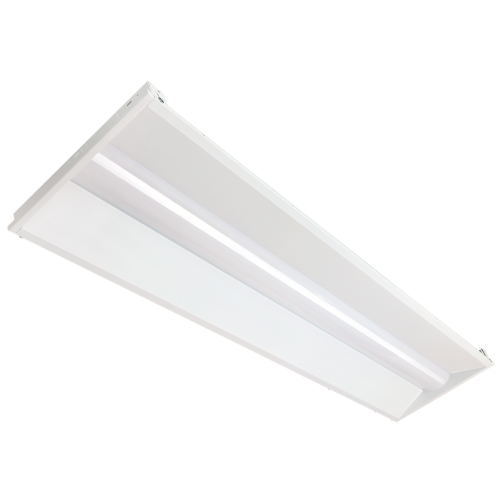

Reno PRISM LED 1x4 Center Basket Troffer (RENO-14CTF-UNV/347-MWMCCT-HL) is the 20/25/30/40W / 3-CCT version. The order reference is R37014. A corridor or reception area may call for illumination distributed along the ceiling. Compare this model with the physical layout and the required light distribution before selecting the fixture count.
The ceiling arrangement for this model must accommodate the panel dimensions and its supported mounting method; a nominal panel size alone does not confirm a surface or suspension kit. For electrical planning, 120-347V is the stated supply requirement for this model. With 3500K/4000K/5000K available, the same model can be set to the colour appearance chosen for the installation. Follow the model instructions when changing settings. The selectable 20/25/30/40W configuration supports adjustment during setup so the same fixture need not run at its highest setting everywhere. The specified 0-10V dimming requires a compatible 0-10V control and the corresponding control connection.
For RENO-14CTF-UNV/347-MWMCCT-HL, refer to the manufacturer’s specification sheet for the detailed dimensions and installation requirements.
Buying tip: Measure the ceiling grid opening and confirm the mounting method. Verify the nominal and actual dimensions when replacing a metric fixture.
| GTA Delivery Only | No |
|---|---|
| Brands | Reno LED Lighting |
| Color Temperature | 3-CCT |
| CRI | >80 |
| Dimmable | YES |
| Life Hours | 100,000hrs |
| Wattage | 20/25/30/40W |
| Voltage | 120-347V |
| Size | 1x4 |
| Operation Temp. | -4°F to +122°F (-20°C to +50°C) |
| MPN ( Part No.) | RENO-14CTF-UNV/347-MWMCCT-HL |
| Beam Angle | 110° |
| Product Color | White |
| Warranty | 10 Years |
| Order Code | R37014 |
