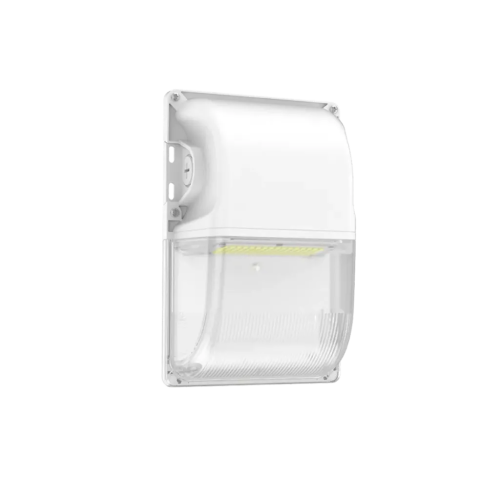

The Reno OPS LED Mini Wall Pack, model RENO-WP-30W-MV-MCCT-SEN-G2-WH, is specified at 15/20/30W, 3-CCT. Order Code: R51020. This model is an option to assess for illumination along the building frontage in a service door or perimeter route; the surrounding layout determines the positions and quantity required.
For this model, coordinate the wall connection and fixture orientation with the entrance or route below it. For electrical planning, 120-347V is the stated supply requirement for this model. The 3000K/4000K/5000K setting choice is useful when the final colour preference will be decided at the installation rather than at ordering. The selectable 15/20/30W configuration supports adjustment during setup so the same fixture need not run at its highest setting everywhere.
For RENO-WP-30W-MV-MCCT-SEN-G2-WH, refer to the manufacturer’s specification sheet for the detailed dimensions and installation requirements.
Buying tip: Check the mounting location, junction-box position and the direction the light will fall before selecting the fixture.
| GTA Delivery Only | No |
|---|---|
| Brands | Reno LED Lighting |
| UPC | 789889311024 |
| Color Temperature | 3-CCT |
| CRI | >80 |
| Life Hours | 50,000hrs |
| Wattage | 15/20/30W |
| Voltage | 120-347V |
| Operation Temp. | -22°F to +122°F (-30°C to +50°C) |
| MPN ( Part No.) | RENO-WP-30W-MV-MCCT-SEN-G2-WH |
| Beam Angle | 90° |
| Product Color | White |
| Rating | IP65 |
| Warranty | 5 years |
| Order Code | R51020 |
