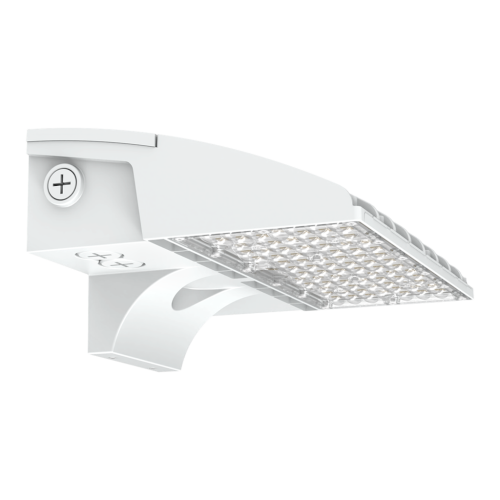

Reno MERIDIAN R2 Architectural Full Cut-Off LED Wall Pack - White

Illuminate the ground beside a building with the white Reno MERIDIAN R2 full cut-off wall pack. Model RENO-FCWP-MW-DV-MCCT-R2-WH, order code R51046, directs its light downward for entrances, exterior circulation routes and service areas where the building wall provides the mounting position.

The R2 model offers 60W, 80W and 100W settings. At 4000K, output ranges from 10,158 to 16,050 lumens, allowing a smaller entrance area and a larger service apron to be considered separately. Position and spacing still matter: the full cut-off form controls upward light, but it does not replace a layout designed for the ground area.

The housing mounts at an appropriate wall electrical box. Its 12.5-inch width, 6.3-inch overall height and 9.5-inch depth help establish clearance from doors, signs and other wall fittings. The fixture uses a 120-347V supply and has an integrated DC photocell for daylight-responsive operation.

Choose 3000K, 4000K or 5000K to coordinate with the adjacent exterior fixtures. A compatible 0-10V control can adjust brightness where the lighting plan calls for it. The photocell is already built in, so it is not necessary to buy an additional photocell simply to obtain that listed function.
