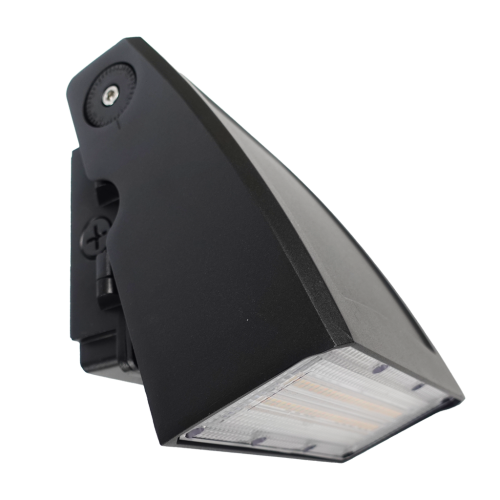

Reno OPS LED Slim Wall Pack R1 Adjustable Angle (RENO-SWP-MW-DV-MCCT-R1) is the 21/28/35W / 3-CCT version. Order Code: R51113. The intended role of this model in a commercial façade is lighting coordinated with doors and adjacent routes, subject to the mounting and electrical conditions of the project.
Place this model on a suitable wall mounting position, with the supply connection and orientation arranged as specified for the model. The 120-347V supply specification must match the circuit serving this model. The 3000K/4000K/5000K colour selection lets the installer coordinate the light with surrounding fixtures instead of committing the whole space to one fixed tone. At 21/28/35W selectable power, the installer can choose the appropriate operating level after considering the layout and the required illumination.
For RENO-SWP-MW-DV-MCCT-R1, refer to the manufacturer’s specification sheet and installation instructions for the detailed dimensions and installation requirements.
Buying tip: Check the mounting location, junction-box position and the direction the light will fall before selecting the fixture.
| GTA Delivery Only | No |
|---|---|
| Brands | Reno LED Lighting |
| Color Temperature | 3-CCT |
| CRI | >70 |
| Life Hours | 100,000hrs |
| Wattage | 21/28/35W |
| Lumens | 2,730/3,640/4,550lm |
| Voltage | 120-347V |
| Operation Temp. | -40°F to +122°F (-40°C to +50°C) |
| MPN ( Part No.) | RENO-SWP-MW-DV-MCCT-R1 |
| Beam Angle | 40° |
| Product Color | Black |
| Rating | IP65 |
| Warranty | 10 Years |
| Order Code | R51113 |
