UL Dual Voltage Multi-CCT Multi-Wattage
Reno LED Lighting

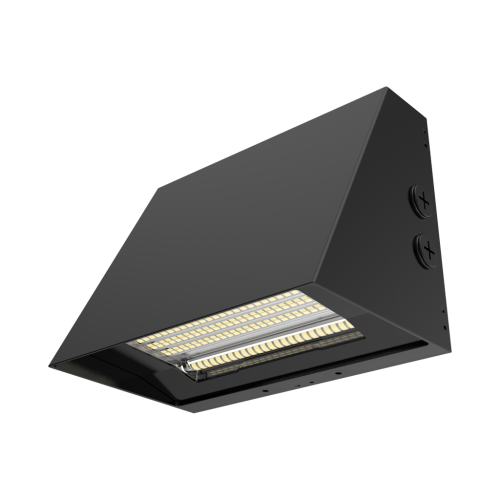

Reno OPS LED Wall Pack | Full Cut-Off, Black

CA$158.18
In stock
SKU
T-6666
Model: RENO-SFWP-DV-MCCT-ABA-G2-R1-BK | Order Code: R51210 | Built-in photocell | 25/30/40W | 120–347V | 3000/4000/5000K | Black

The black Reno OPS R1 full cut-off LED wall pack directs lighting below the mounting position for building perimeters, service doors and pedestrian routes. Adjustable distribution helps match the illuminated area to the wall location.

  • Built-in photocell with an on/off setting.
  • BeamFlex T2/T3/T4 distribution choices.
  • 25/30/40W and 3000/4000/5000K; 120–347V input.
  • 0–10V dimming with a slim architectural housing.

Buying tip: Check the wall mounting position and desired coverage before selecting the distribution. Decide whether the built-in photocell or an existing external control will operate the light.

Reno limits its DarkSky designation to 3000K. For projects near homes, check aiming and property-line light levels; the 4000K and 5000K settings do not carry that designation.

Does a full cut-off shape guarantee site compliance? No. Orientation, the chosen settings and the project requirements still matter. This IP65 fixture has a ten-year limited manufacturer warranty.

Manufacturer specification sheet · Installation instructions.

More Information
GTA Delivery Only No
Brands Reno LED Lighting
UPC 789889311246
Color Temperature 3000/4000/5000K
CRI >80
Dimmable YES
Life Hours 100,000hrs
Wattage 25/30/40W
Lumens 3,172–5,653 lm
Voltage 120-347V
Operation Temp. -40°F to +122°F (-40°C to +50°C)
MPN ( Part No.) RENO-SFWP-DV-MCCT-ABA-G2-R1-BK
Built-in Photocell Yes
Beam Angle T2/T3/T4
Product Color Black
Rating IP65
Warranty 10 Years
Order Code R51210
