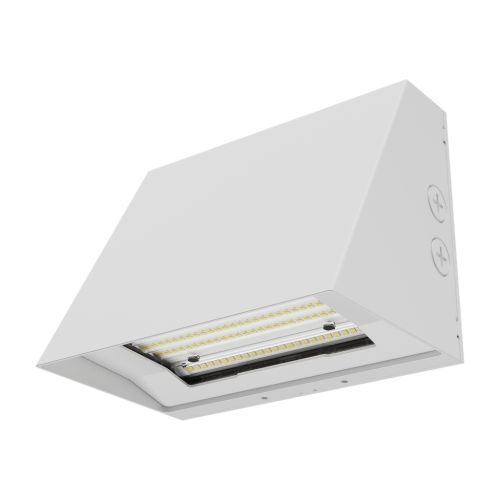

Reno OPS LED Architectural Slim Full Cut-off Wall Pack R1 - White

The Reno OPS LED Architectural Slim Full Cut-off Wall Pack R1, model RENO-SFWP-DV-MCCT-ABA-G2-R1-WH, is specified at 25/30/40w, 3-CCT. The order reference is R51211. This model is an option to assess for light directed from the wall toward the used space in an exterior circulation area; the surrounding layout determines the positions and quantity required.

Place this model on a suitable wall mounting position, with the supply connection and orientation arranged as specified for the model. The full cut-off form of this model makes fixture orientation important when directing light below the wall position. Plan the electrical connection around this model’s 120-347V rating. Use the 3K/4K/5K colour options to choose the appearance of the space during setup; colour selection and brightness adjustment serve different purposes. At 25/30/40w selectable power, the installer can choose the appropriate operating level after considering the layout and the required illumination. The specified 0-10V dimming requires a compatible 0-10V control and the corresponding control connection.

For RENO-SFWP-DV-MCCT-ABA-G2-R1-WH, refer to the manufacturer’s specification sheet and installation instructions for the detailed dimensions and installation requirements.
