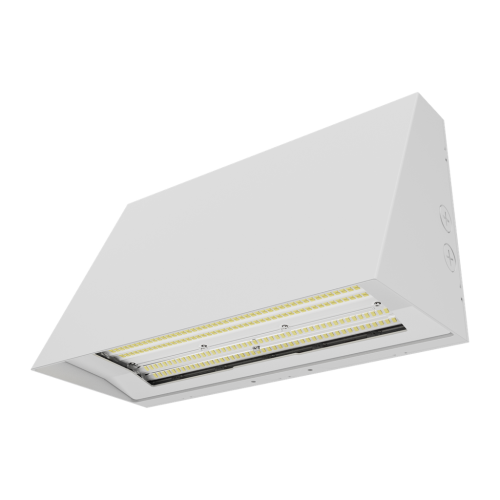

Reno OPS LED Architectural Slim Full Cut-off Wall Pack R2 - White

Reno OPS LED Architectural Slim Full Cut-off Wall Pack R2 (RENO-SFWP-DV-MCCT-ABA-G2-R2-WH) is the 60/80/100W / 3-CCT version. Order Code: R51213. Consider this model for a commercial façade when lighting coordinated with doors and adjacent routes is part of the lighting plan and the model’s installation conditions are satisfied.

The wall mounting position for this model should align with the electrical feed and the area to be illuminated. The full cut-off form of this model makes fixture orientation important when directing light below the wall position. The 120-347V supply specification must match the circuit serving this model. The 3K/4K/5K setting choice is useful when the final colour preference will be decided at the installation rather than at ordering. The 60/80/100W power settings allow output to be selected for the layout; use the lower or higher setting according to the task, not a fixed rule for room names. Use the 0-10V control interface for dimming; the power circuit alone does not provide the separate dimming signal.

For RENO-SFWP-DV-MCCT-ABA-G2-R2-WH, refer to the manufacturer’s specification sheet and installation instructions for the detailed dimensions and installation requirements.
