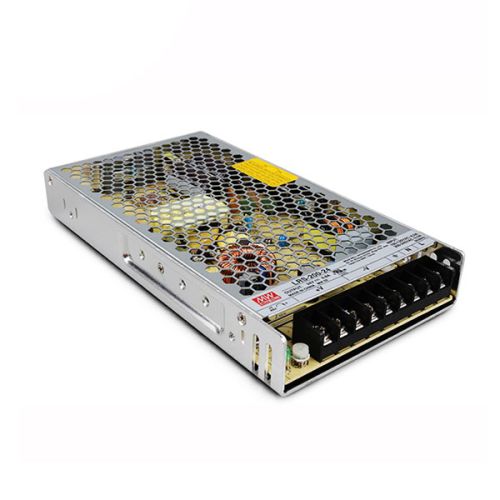

Mean Well LED Driver - 200W | 24V DC
CA$81.59
In stock
SKU
T-2445
Model: LRS-200-24 | Input: 90-132V AC / 180-264V AC / 254-370V DC | Output: 24V DC | Capacity: Max. 200W
LRS-200-24 is the Mean Well LED Driver. For a lighting power-supply replacement, this model must match both the supply side and the connected load. It has 90-132V AC / 180-264V AC / 254-370V DC input and 24V DC output. The listed load capacity is Max. 200W; total connected demand must remain within the model’s permitted loading conditions.
This version lists length 215 mm, height 50 mm. Those measurements help check physical fit at the power-supply location. Choose the connectors and control arrangement for this model from its installation instructions and the connected lighting requirements.
| Brands | Mean Well |
|---|---|
| Product | Driver |
| MPN ( Part No.) | LRS-200-24 |
| Wattage | Max. 200W |
| Amperage | 8.8A |
| Operation Temp. | -30 - +70℃ |
| Input Voltage | 90-132V AC / 180-264V AC / 254-370V DC |
| Output Voltage | 24V DC |
| Warranty | 2 Years |
| Length | 215 mm |
| Height | 50 mm |
| Net Weight | 0.93 kg |
| Gross Weight | 115 mm |
