Philips Advance T8 Fluorescent Ballast - 120-277V AC | Dimmable | Programmed Rapid Start

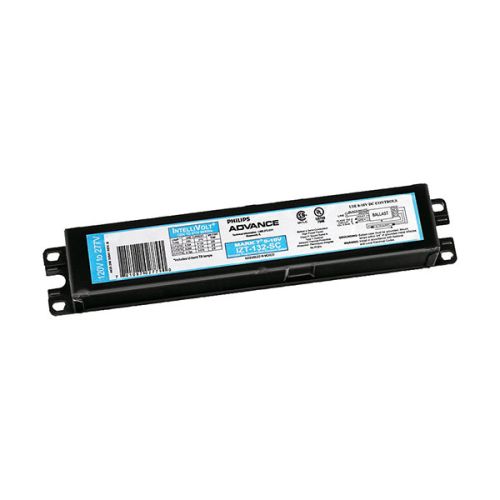

Philips Advance T8 Fluorescent Ballast (IZT-132-SC-35M (183749)). When servicing a socketed fluorescent fixture, compare this model against the lamp schedule and supply before ordering. The listed lamp configuration is 1 X F32T8, which should be checked as a complete lamp-and-count combination. This is the programmed start version, so the fixture wiring and lampholder arrangement must suit that starting method. Ballast factor 0.88 is one comparison point for retaining the intended lamp output in this fixture.

Use the 120-277V AC version only where the supply and control arrangement suit its electrical specification. This version lists length 9.50 in., width 1.70 in., height 1.18 in. Those measurements help check physical fit at the ballast compartment. Follow the wiring diagram for this model when making the replacement connections.

Buying tip: Match the lamp designation, number of lamps and supply voltage to the existing ballast.
