Sylvania T8 Fluorescent Ballast - 120-277V AC | Dimmable | Programmed Rapid Start

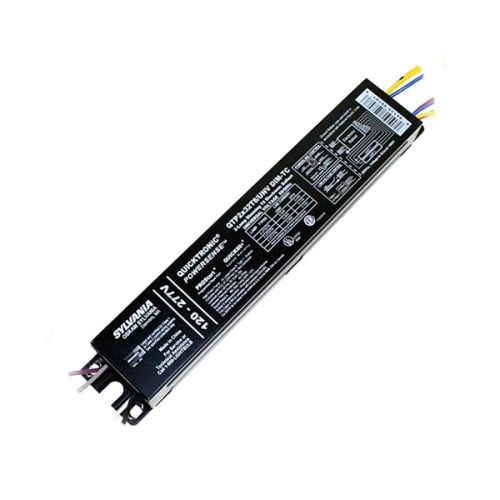

The Sylvania T8 Fluorescent Ballast, model QTP2x32T8/UNV DIM-TC (50707), is the component described here. Use this model when the ballast in the fixture is specified for the same lamp type, lamp count and supply. It is specified for 2 X F32T8; preserve the required lamp type and quantity when selecting the ballast. The programmed start starting arrangement is part of the compatibility check for the installed lamp circuit. The listed ballast factor is 0.88, which is relevant when comparing the output of the same lamps on different compatible ballasts.

Plan the electrical connection around this model’s 120-277V AC rating. For the ballast compartment layout, allow for the listed length 9.50 in., width 1.68 in., height 1.00 in. and the installation clearances required by its instructions. Follow the wiring diagram for this model when making the replacement connections.

Buying tip: Match the lamp designation, number of lamps and supply voltage to the existing ballast.
