Philips Advance T8 Fluorescent Ballast - 120V AC | Dimmable | Programmed Rapid Start

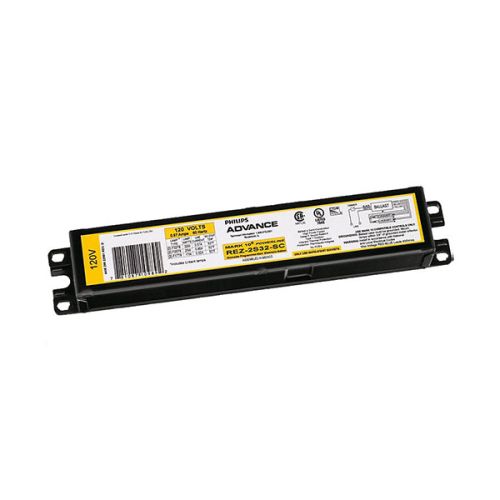

Philips Advance T8 Fluorescent Ballast (REZ-2S32-SC-35M (183053)). The role of this model is to operate the corresponding fluorescent lamp arrangement within a compatible fixture. The 2 X F32T8 operating configuration distinguishes this ballast from versions intended for a different lamp count. The programmed start starting arrangement is part of the compatibility check for the installed lamp circuit. The listed ballast factor is 0.88, which is relevant when comparing the output of the same lamps on different compatible ballasts.

This version is specified for 120V AC; that rating is part of the selection when replacing an existing fitting. The listed body dimensions are length 9.50 in., width 1.70 in., height 1.18 in.; use them when checking the available space around the ballast compartment. Follow the wiring diagram for this model when making the replacement connections.

Buying tip: Match the lamp designation, number of lamps and supply voltage to the existing ballast.
